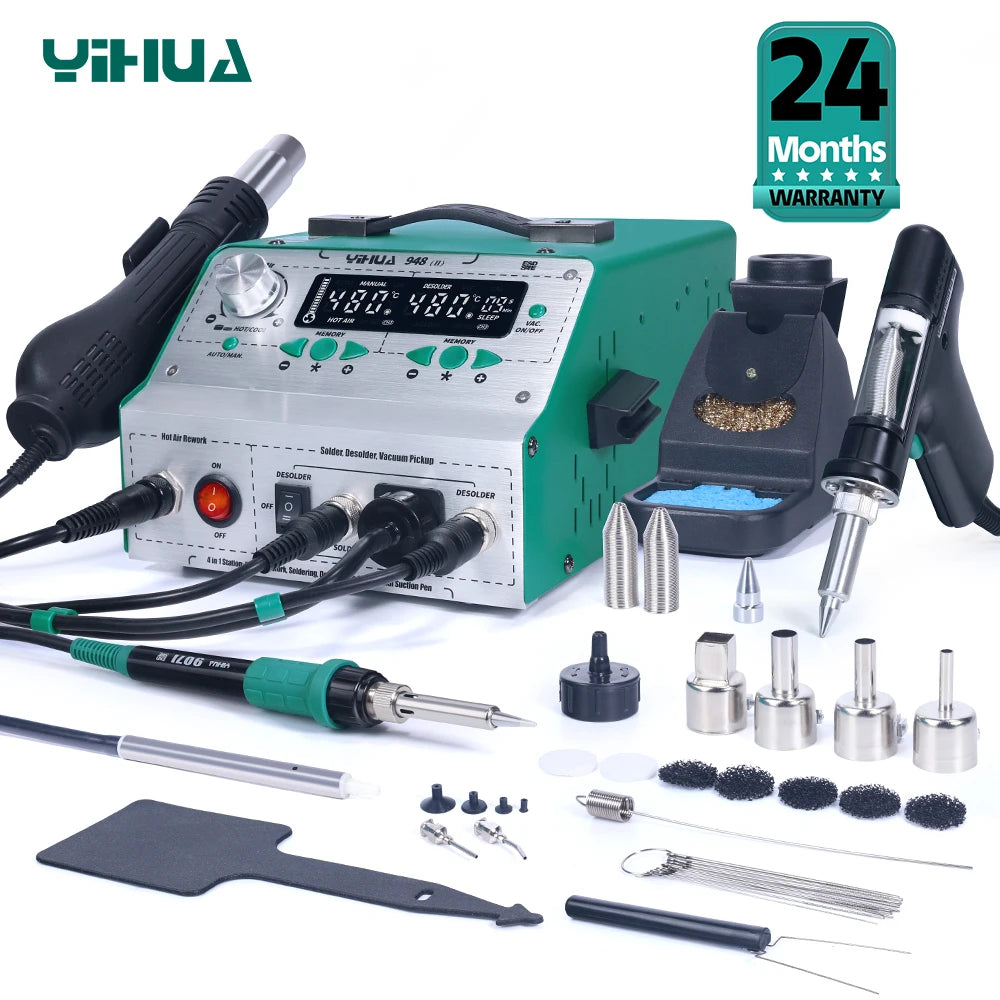

YIHUA 948-II Suction Tin Gun Desoldering Station Hot Air Gun Soldering Iron Suction Pen 4 IN 1 Intelligent Soldering Station

YIHUA 948-II Suction Tin Gun Desoldering Station Hot Air Gun Soldering Iron Suction Pen 4 IN 1 Intelligent Soldering Station

$299.99 USD
$0.00 USD $299.99 USD
Sale Sold out
Shipping calculated at checkout.
Voltage
Ships From

SPECIFICATIONS

Brand Name: YIHUA

Certification: CE,FCC

High-concerned chemical: None

Model Number: 948-II

Origin: De(origin)

is_customized: Yes

Model: 948-II

Parameter:
Maximum Power: 780W

Power Supply Voltage: AC 110V-127V ±10% 60Hz OR AC 200V~240V 50Hz

Plug voltage: EU 220V-240V/  US 110V-127V/ Brazil 110V-127V/ UK 220V-240V

Storage Temperature: -20~80°C/-4~176°F

Air Gun Temperature Range: 100~480

Air Mode: Brushless Fan And Soft Wind

Air Flow: less than 120L/min

Desoldering Station Power: 75W

Desoldering Station Temperature Range: 350~48

Tin Soldering Pump Power: 60W

Soldering Iron Power: 60W



Function:

1. 3 Preset channels, directly use, save time

2. Digital temperature correction, make welding temperature more accurate

3. C/F display, Allows the station to adapt user preferences in different regions

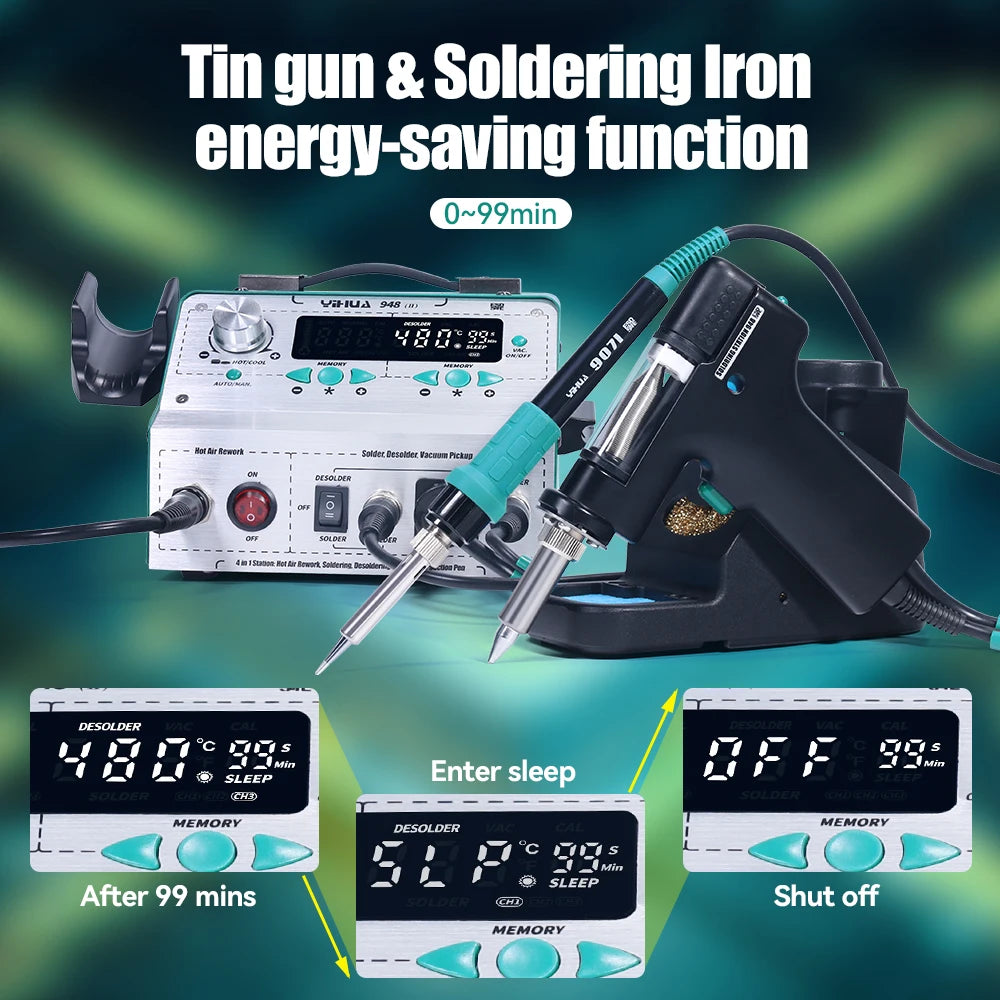

4. Sleep mode, energy saving

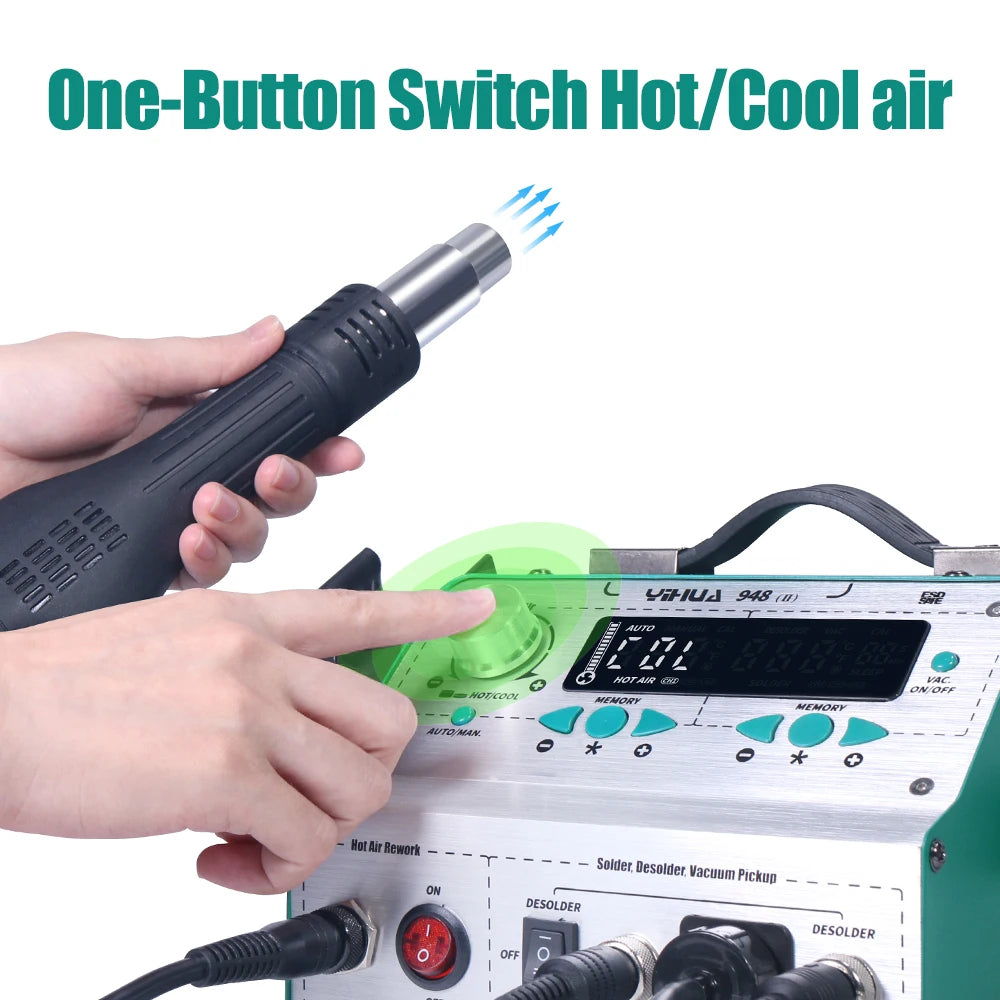

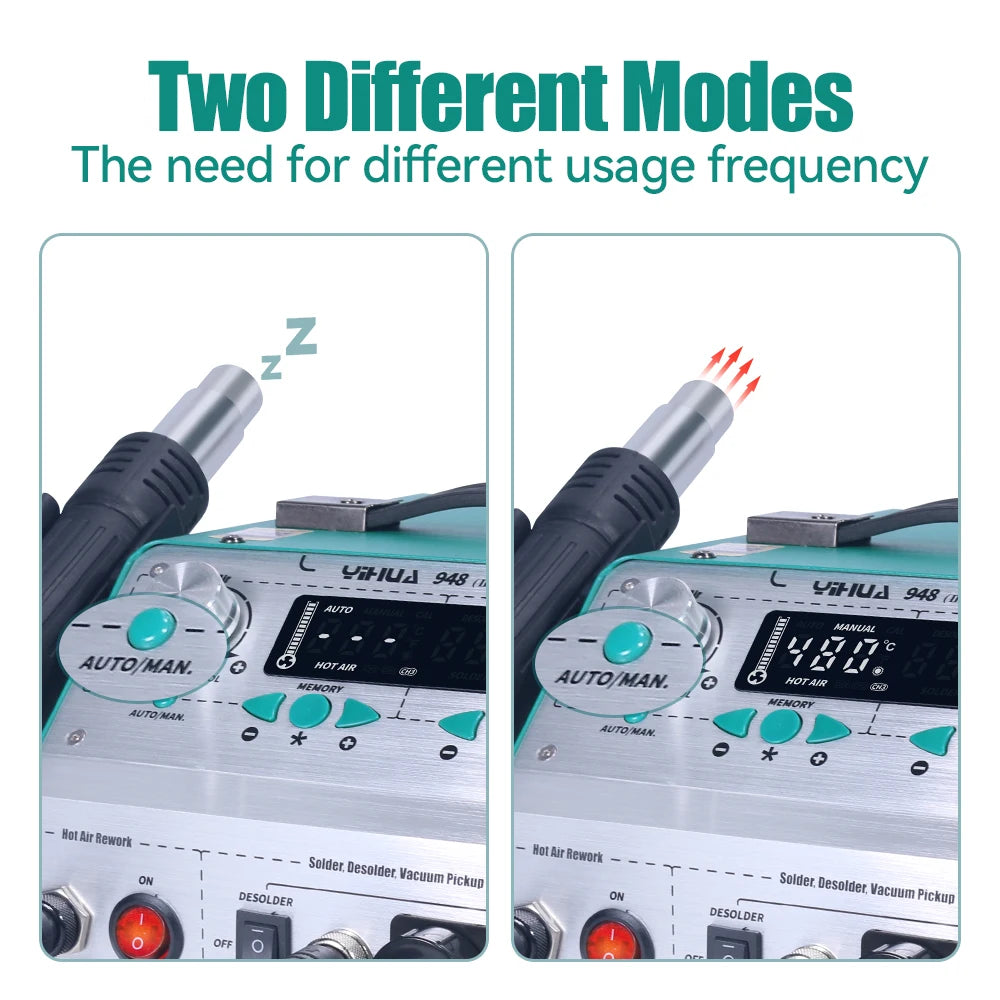

5. Air gun auto/manual mode allows users different frequencies to use the air gun

6. Automatic shut down


Tips:

1. Before desoldering: you need to turn the machine on, and the tin gun handle heats up to dissolve the tin of tip and then can suck to desolder

2. How to get more suck smoothly:  can use the pin to clear the tin gun handle or replace the filter sponge


How to use:

Great for desoldering & soldering applications on a broad range of components. Applicable components include SOIC, CHIP, QFP, PLCC, BGA, SMD. On top of that, the station is especially suitable for desoldering in-line sockets, transformers, LCD screens, nixie tube screens, IC chips, and in-line headers. The unit's applications include heat shrinking, drying, paint removal, glue removal, defrosting, pre-heating, glue soldering, and more.





Q&A

1.The screen shows "PHT", and the suction gun is not working. What's the reason?

This is the preheating state of the suction gun. It can work normally after the preheating is completed, and this process takes about 2-3 minutes. If the red dot on the screen does not flash, it indicates that the preheating is complete.
