PowMr Off-Grid Hybrid Inverter 1KW 1.5KW with 80A MPPT Solar Charge DC 12V 24V to 230V AC Max PV 150Vdc Pure Sine Wave Inverter

PowMr Off-Grid Hybrid Inverter 1KW 1.5KW with 80A MPPT Solar Charge DC 12V 24V to 230V AC Max PV 150Vdc Pure Sine Wave Inverter

$252.99 USD
$0.00 USD $252.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Output Voltage
Ships From

SPECIFICATIONS

AC Input Voltage: 230VAC

Battery Voltage: 12V(1KW) /24V(1.5KW)

Brand Name: PowMr

Certification: CE

Feature 1: For Home Appliances

Feature 2: 40A MPPT Solar Charge

Feature 3: 1.5KW Hybrid Inverter

High-concerned chemical: None

Is Smart Device: Yes

Maximum PV Array Open Circuit Voltage: 150VDC

Model Number: POW-HVM Series

Origin: Mainland China

Output Frequency: 50 Hz/60 Hz

Output Power: 1 - 200 KW

Output Type: SINGLE

Waveform: Pure sine wave

is_customized: Yes

PowMr Off-Grid Hybrid Inverter 1KW 1.5KW with 80A MPPT Solar Charge DC 12V 24V to 230V AC Max PV 150Vdc Pure Sine Wave Inverter


Product Features

1. 1KW 1.5KW Pure sine wave solar inverter
2. Buil in 80A MPPT solar charger
3. PV input voltage range 20-150VDC
(for 1000W),30-150VDC(for 1500W)
4. Built-in anti-dust kit for harsh environment
5. Smart battery charge design to optimize battery life
6. Meet rich customized demands
7. Solar energy is provided directly to the load first
Product Specification


INVERTER MODEL

1.0KW-12V

1.5KW-24V

Input Voltage Waveform

Sinusoidal (utility or generator)

Nominal Input Voltage

230Vac

Max AC Input Voltage

300Vac

Nominal Input Frequency

50Hz / 60Hz (Auto detection)

Output Short Circuit Protection

Circuit Breaker

Efficiency (Line Mode)

>95% ( Rated R load, battery full charged )

Transfer Time

10ms

Rated Output Power

1000VA/1000W

1500VA/1500W

Output Voltage Waveform

Pure Sine Wave

Peak Efficiency

94%

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

12Vdc

24 Vdc

Utility Charging Mode

Charging Algorithm

3-Step

Floating Charging Voltage

13.5Vdc

27Vdc

MPPT Solar Charging Mode



Max. PV Array Power

600W

1200W

PV Array MPPT Voltage Range

20~150Vdc

30~150Vdc

Max. PV Array Open Circuit Voltage

150Vdc

Max solar charging current

40Amp

Max(AC+Solar) Charging current

80Amp

General Specifications

Safety Certification

CE

Operating Temperature Range

-10°C to 50°C

Storage temperature

-15°C~ 60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

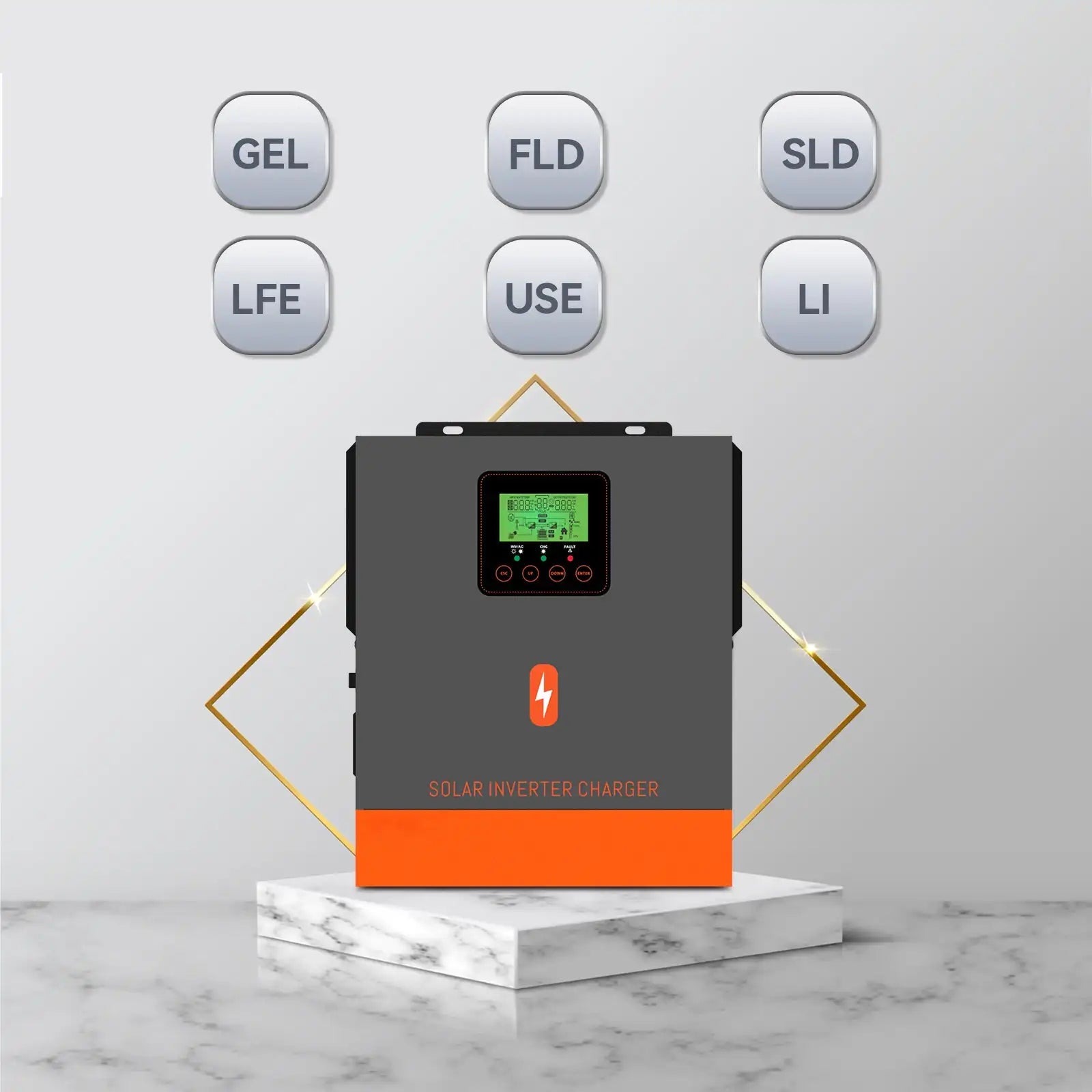

MPPT Charge Controller Compatible with Various Batteris

Equipped with an integrated MPPT charge controller 1500W(voltage range: 30-150V),1000W(voltage range: 20-150V) the device charges 24V(1.5KW) 12V(1KW) batteries, including lead-acid (flooded, AGM, sealed lead-acid, gel), LiFePO4 batteries, and lithium batteries (user mode), with a maximum photovoltaic array power of 1200W(1.5KW), 600W(1KW). It also accepts energy from solar panels, the electrical grid, or a generator for optimal versatility.

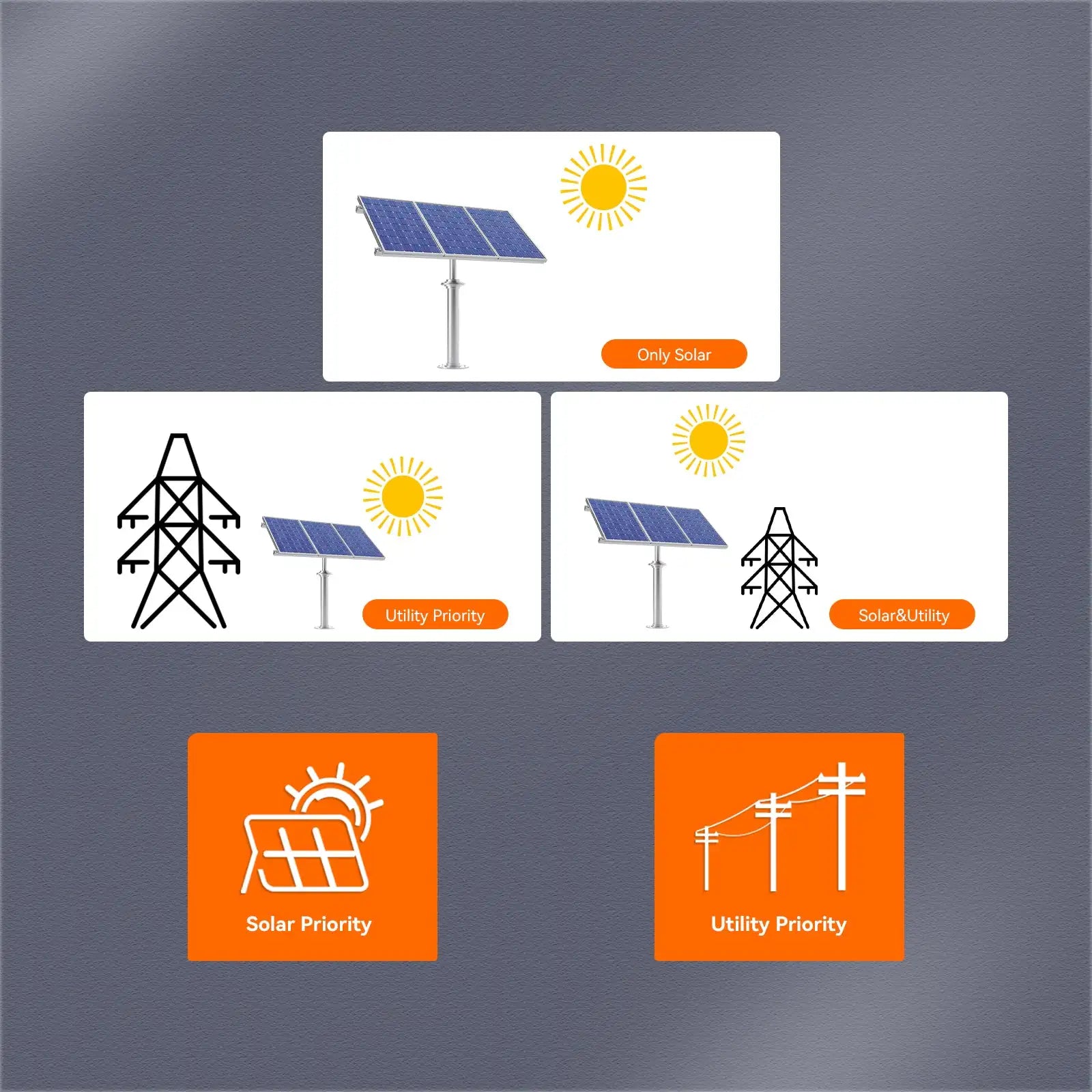

Versatile Working Modes
Customize the priority of power inputs and outputs with 3 charging modes(Only Solar, Solar First, and Mains&Solar) and 4 output modes(Solar First, Utility First, SBU Priority, and MKS Priority). This inverter charger offers efficient power management for personalized energy consumption.


All-Round Protections
The PowMr inverter charger provides four charging stages, safeguards against overload, over-temperature, and short circuits, and features automatic restart. It includes intelligent fans that enhance battery performance, reduce heat, and increase system longevity. A cold start function is also available.
