SPECIFICATIONS

Brand Name: PowMr

Certification: CE

Feature 1: MPPT Solar Charger

Feature 2: Grid-Tie Inverter

Feature 3: Support Lifepo4

High-concerned chemical: None

Is Smart Device: Yes

Item 1: On-grid 6200W Solar Inverter

Item 2: grid tie 4200W Solar Inverter

Max.PV Array Power: 6500W/6200W

Model Number: POW-HVM Series

Nominal DC Input Voltage: 48Vdc/24Vdc

Nominal Output Voltage: 220/230/240VAC

Nominal PV Voltage: 360Vdc

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50Hz/60Hz(Auto detection)

Output Power: 1 - 200 KW

Output Type: SINGLE

Output Voltage Waveform: Pure Sine Wave

Peak Efficiency: 93%

Rated Output Power: 6200W/4200W

Size: 100*300*440(mm)

Weight: 10.5kg

is_customized: Yes

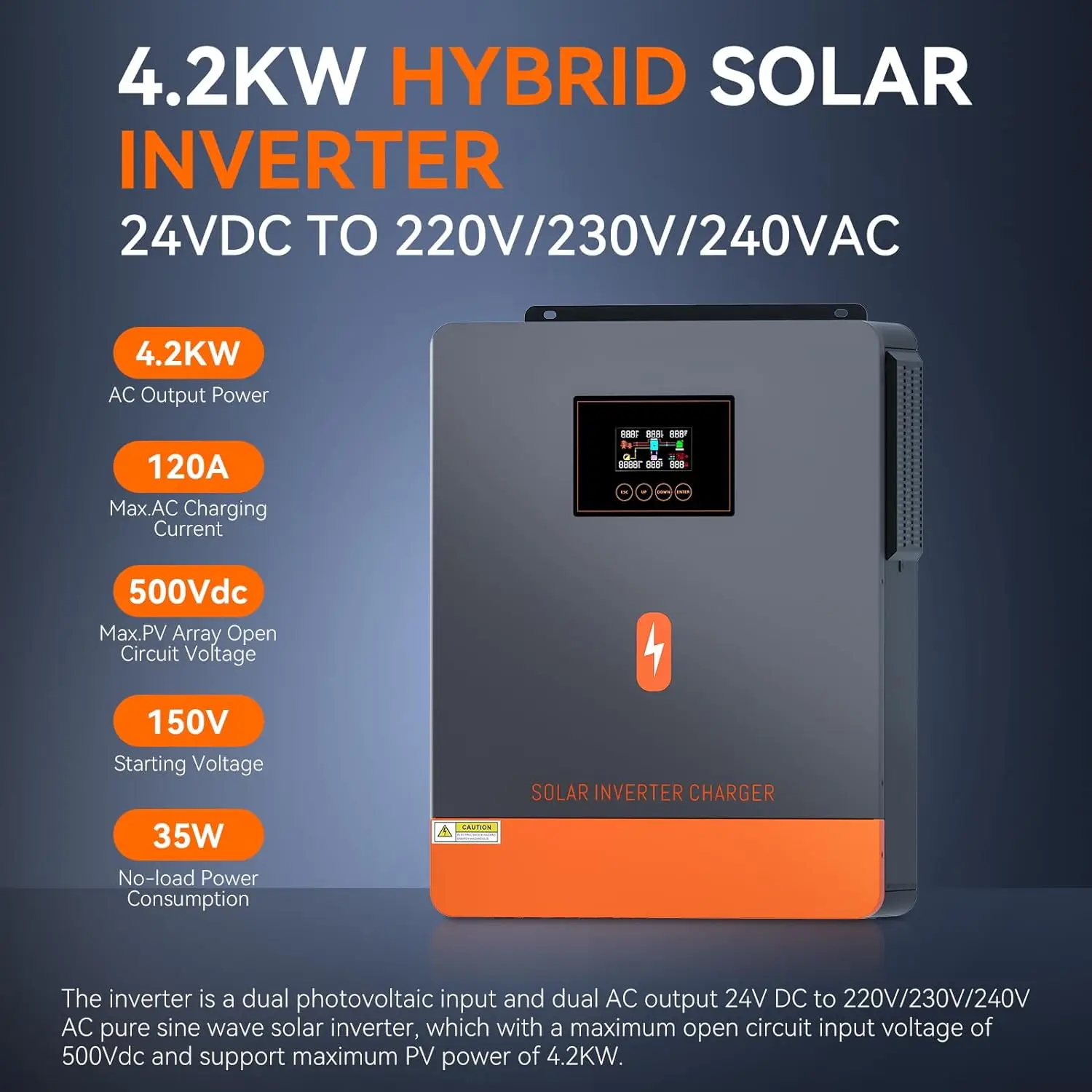

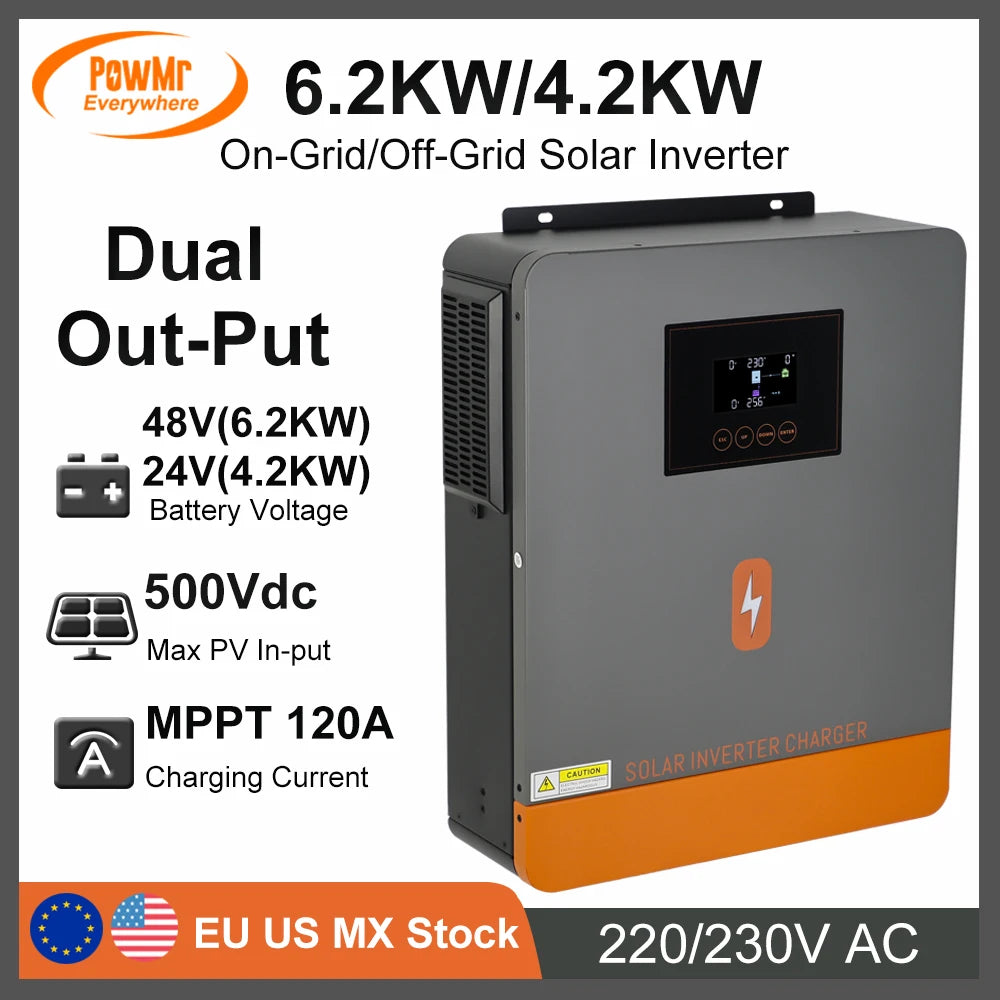

PowMr MPPT 120A Solar Charger 6.2KW 48V /4.2KW 24V On Grid/Off Grid Inverter 230VAC and Max PV 6200W 6500W for Battery Charger

Inverter Use Note:The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

1.Pure sine wave inverter

2.Configurable input voltage range for home appliances and personal computers via LCD setting

3.Configurable battery charging current based on applications via LCD setting

4.Configurable AC/Solar Charger priority via LCD setting

5.Compatible to mains voltage or generator power

6.Auto restart while AC is recovering

7.Overload/Over temperature/short circuit protection

8.Smart battery charger design for optimized battery performance

9.Cold start function

Basic System Architecture

The following illustration shows basic application for this inverter/charger.It also includes following devices to have a complete running system：

●Generator or Utility.

●PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment，including motor-type appliances such as tube light，fan，refrigerator and air conditioner.

Specification

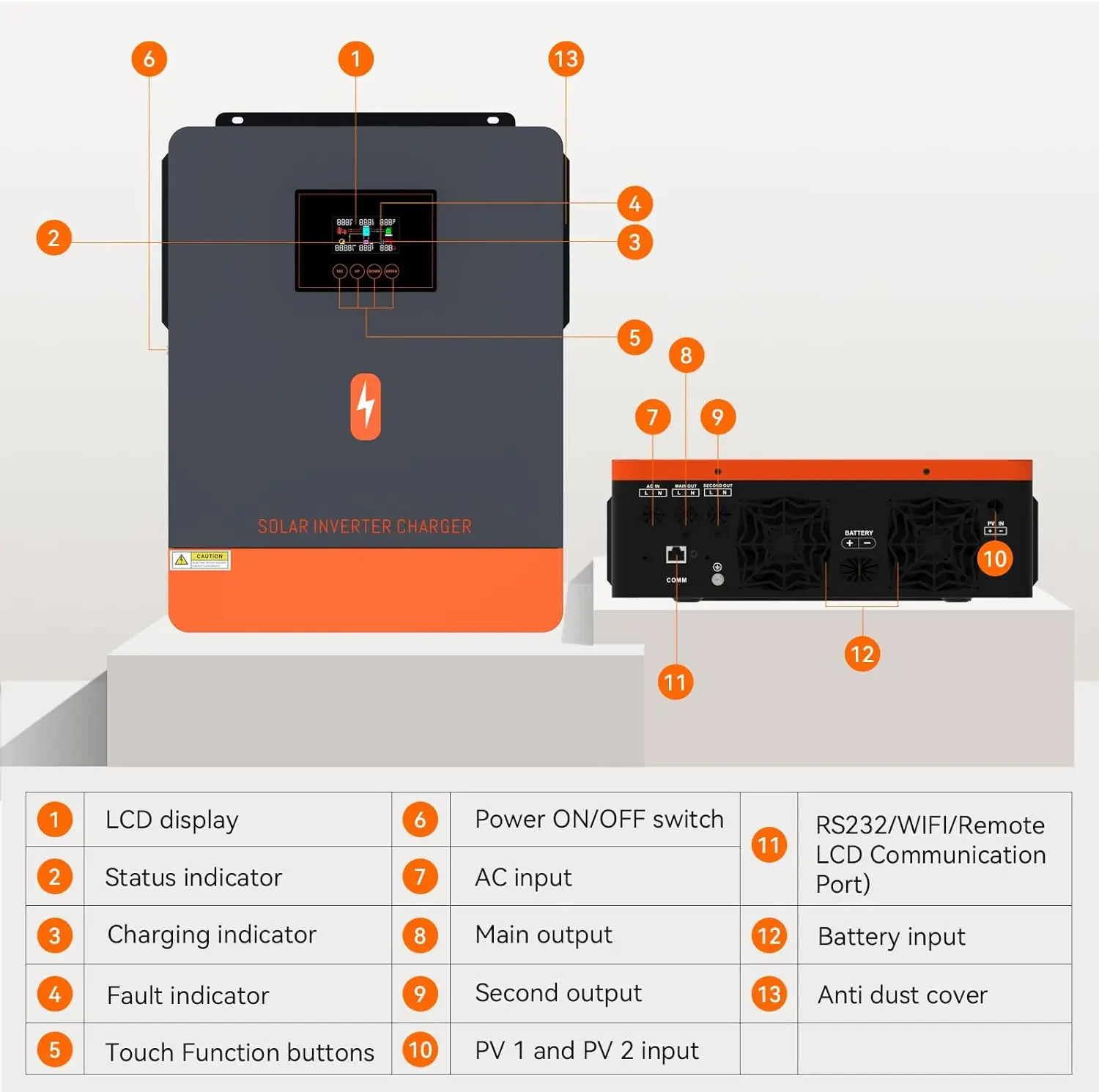

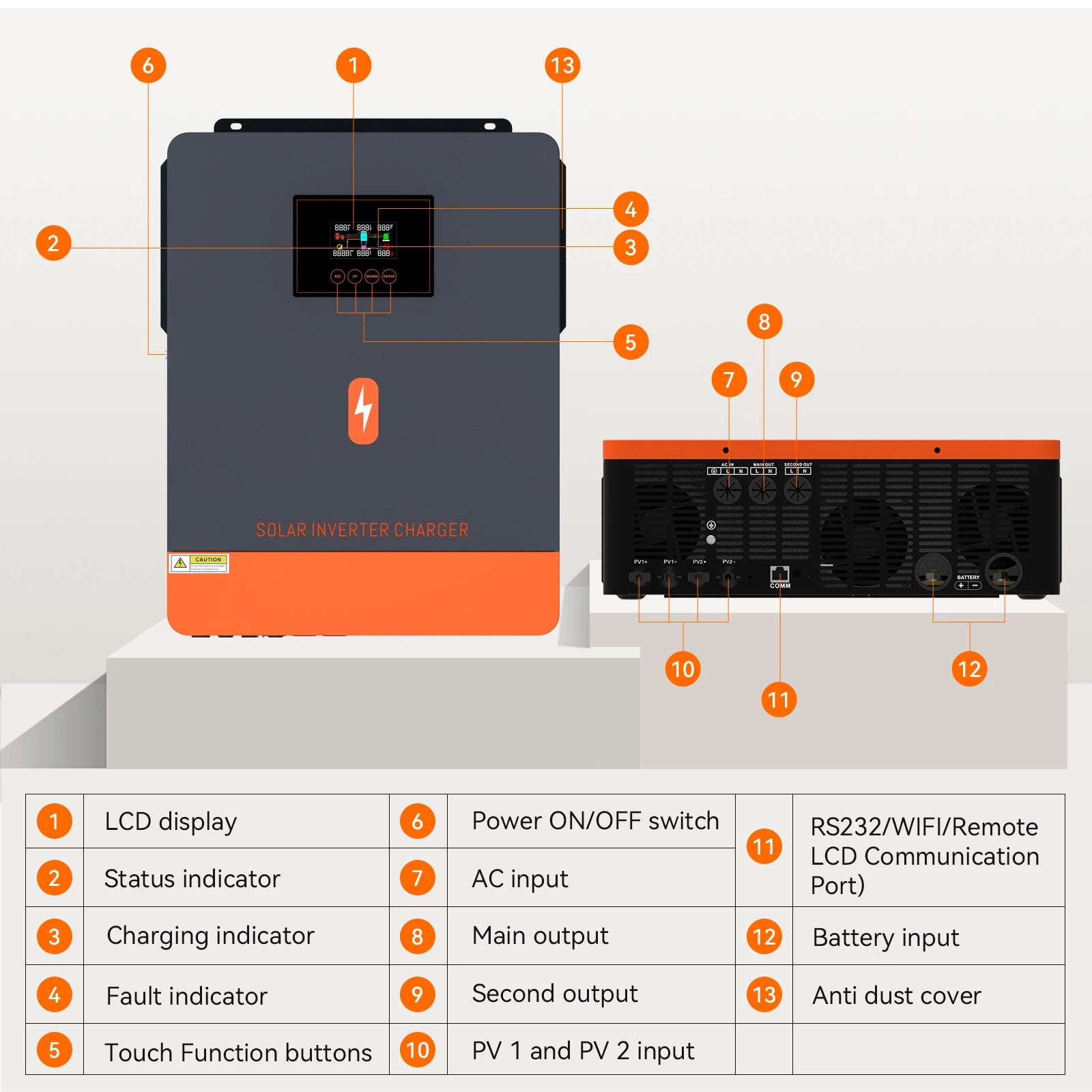

Product Overview

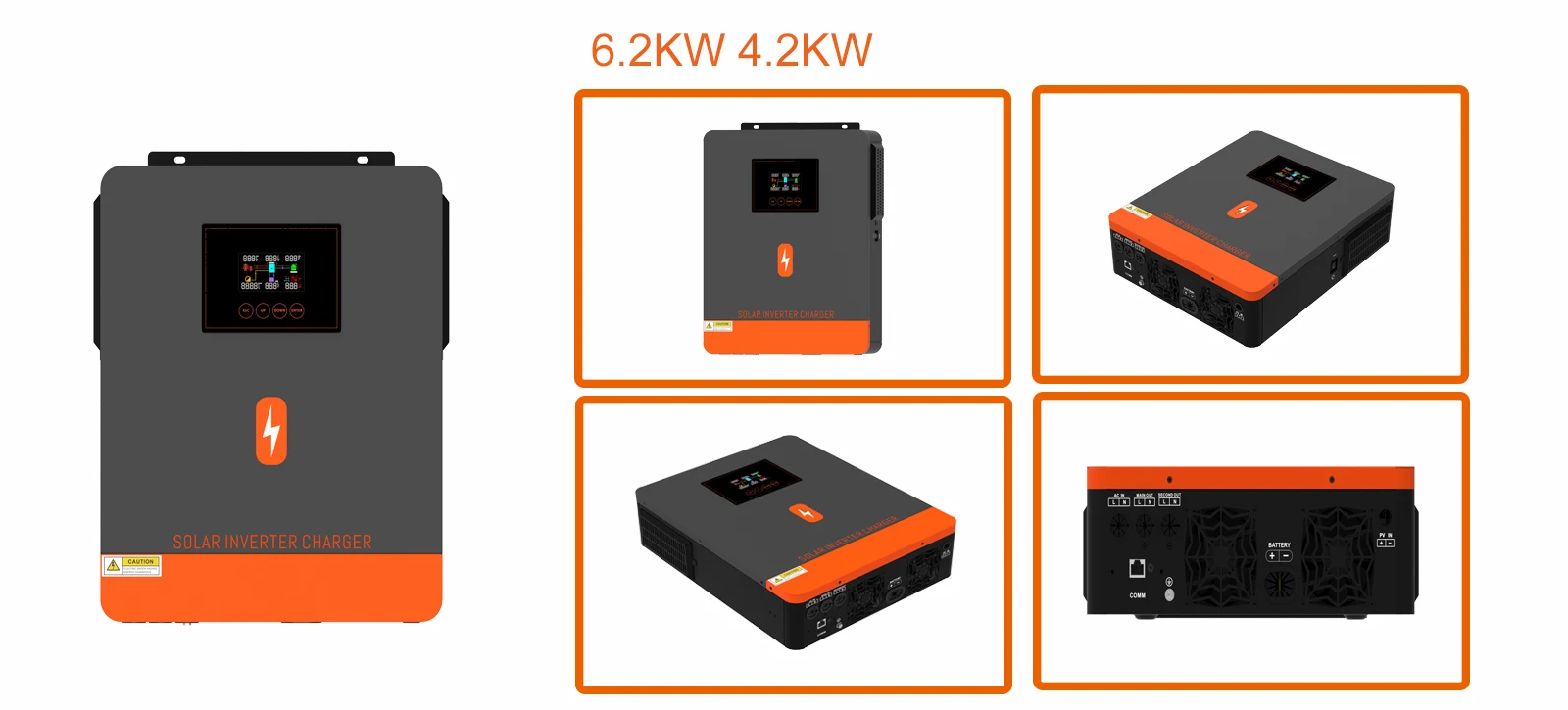

Product Pictures
