SPECIFICATIONS

Battery Type: 24V Lead Acid or Lithium Battery

Brand Name: PowMr

Certification: CE

Communication Interface 1: None

Communication Interface 2: None

High-concerned chemical: None

Is Smart Device: Yes

Maximum PV Input Power: 4200W

Model Number: POW-LVM3.6M-24V

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50Hz/60Hz

Output Power: 1 - 200 KW

Output Type: SINGLE

Output Voltage Waveform: Pure Sine Wave

Rated Input Voltage: 110/120VAC

Size: 110*334*423 cm

Weight: 10KG

is_customized: Yes

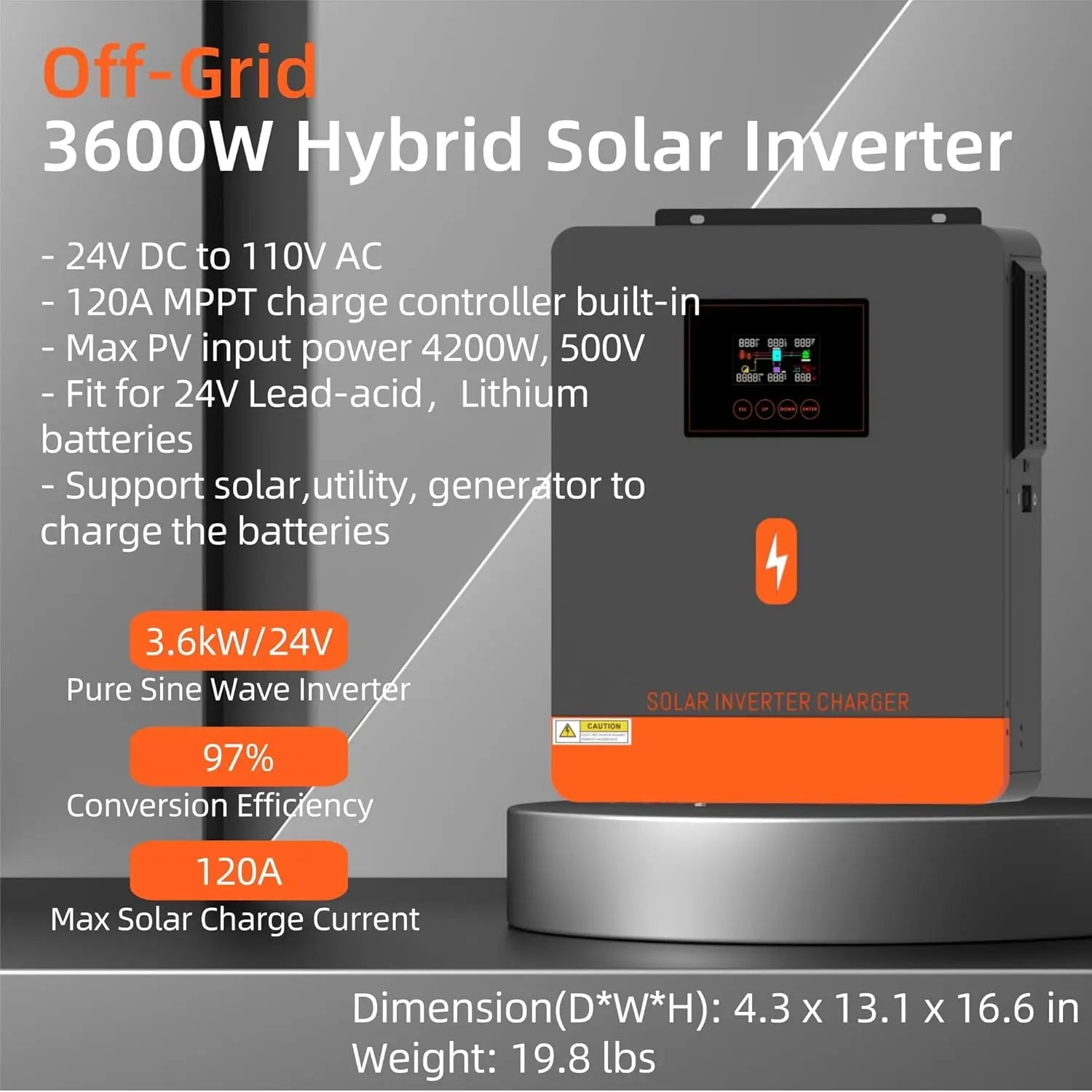

PowMr 3.6KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 120A Solar Battery Charger

【Pure Sine Wave Solar Inverter】

3.6KW solar inverter 24V 110Vac adopts full digital voltage and current double closed-loop control, advanced SPWM technology, and output of pure sine wave. It is a new solar inverter charger built-in 120A Mppt controller and an 80A AC Charger. Support Utility, Generator, and Solar Charge

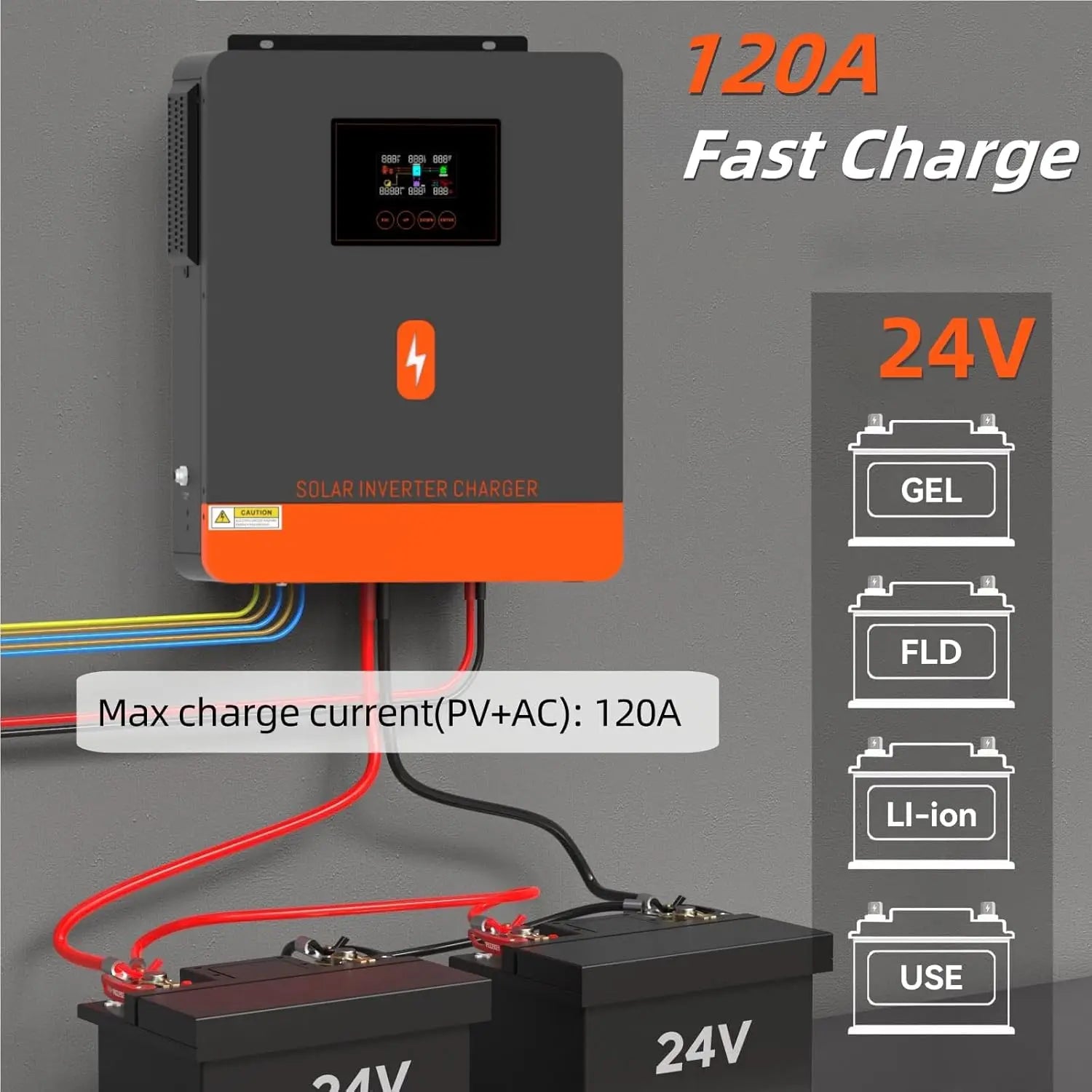

Compatible with Multiple Battery Type

Off-Grid solar inverter 24V 3600w activates lithium battery by PV solar or mains, allowing access to the 24V lead-acid (Seal, AGM, Gel, Flooded) battery and lithium battery. suggest battery cable size: 2awg

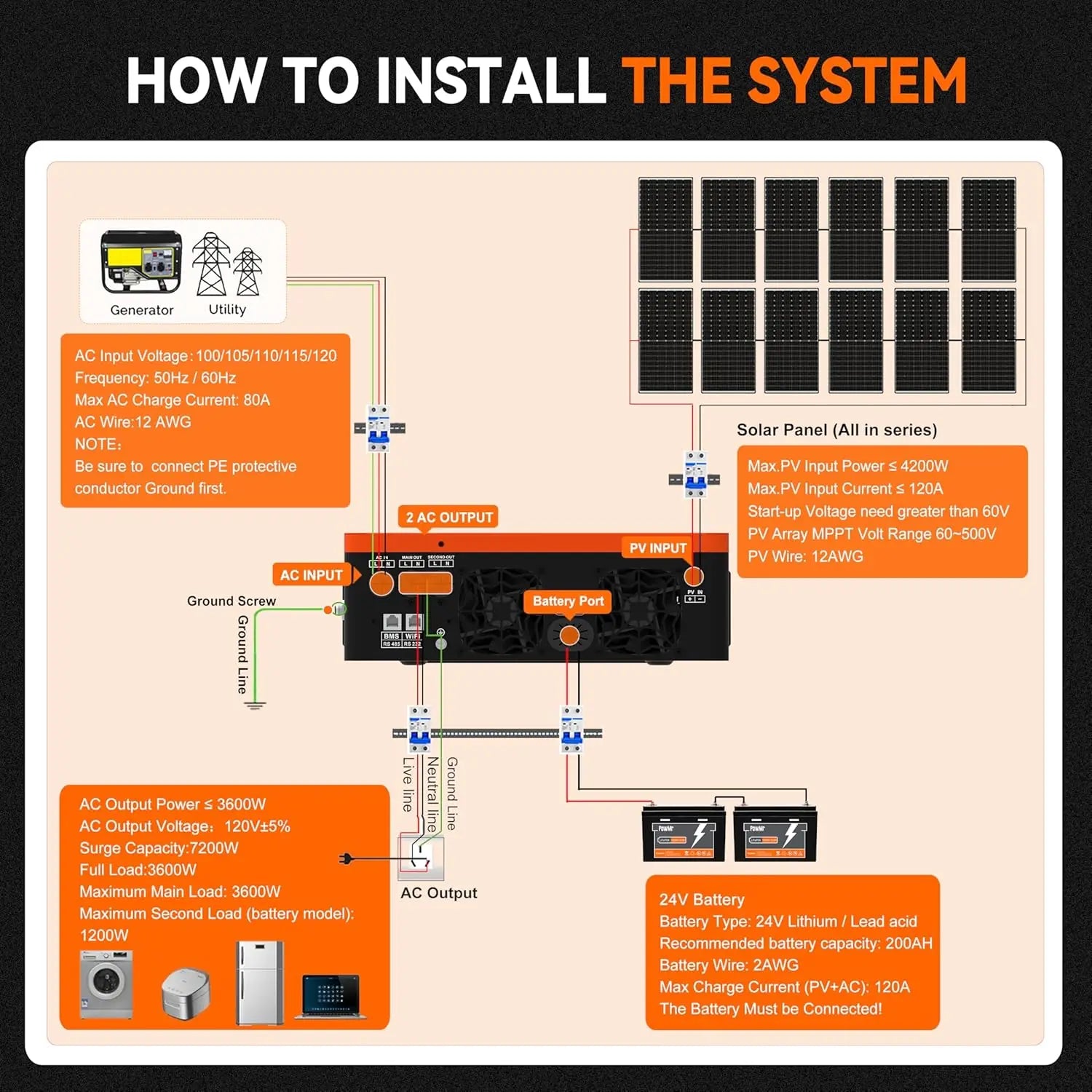

Technical Specifications

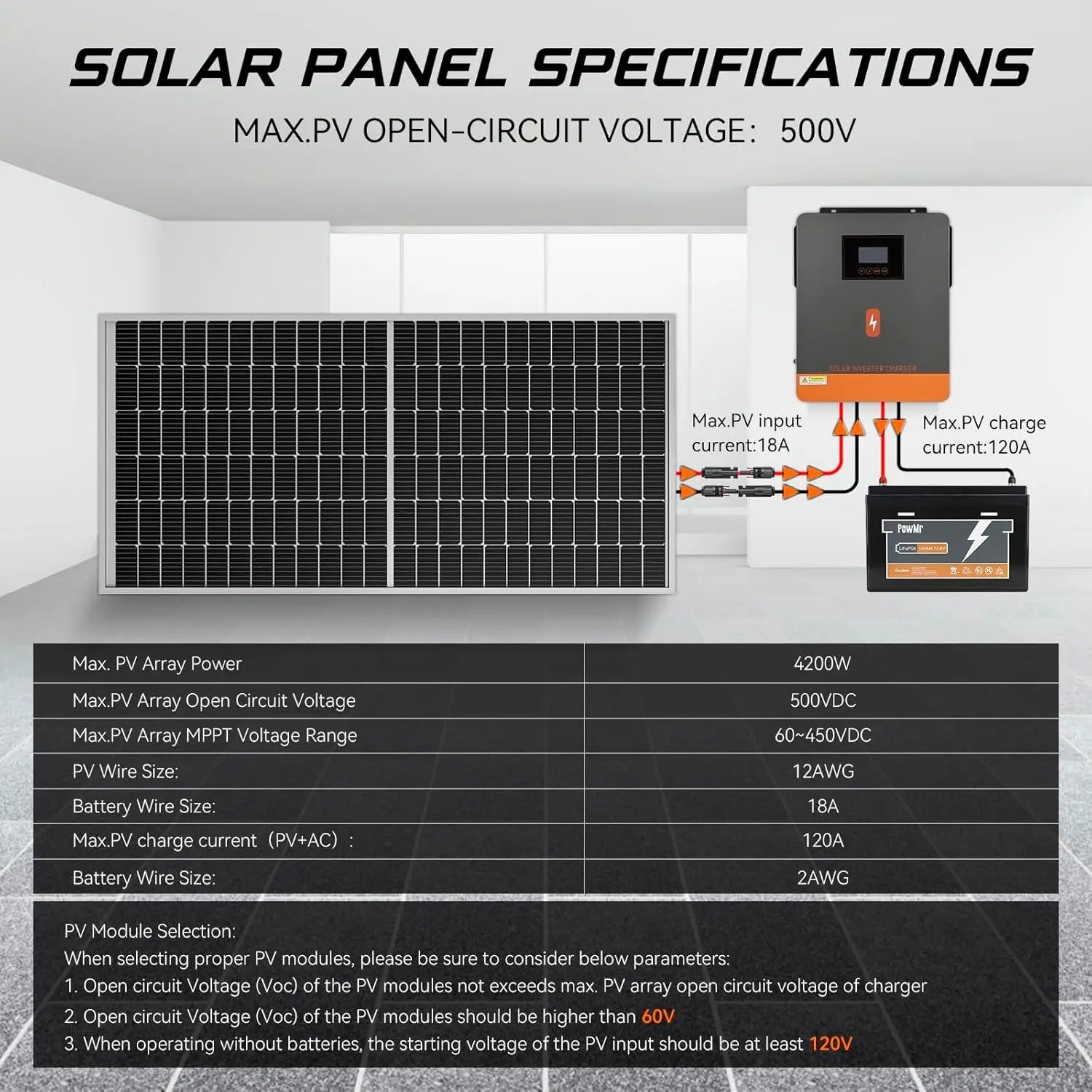

3600W solar inverter pure sine wave 24V DC to 120V AC. Max PV Input: 4200W, 500V(VOC), 18A; and Max.PV output: 120A; Hybrid charging Max charger current (AC charger+PV charger): 120A; PV Starting voltage >60V, suggest all solar panels in series. suggest PV and AC cable size: 12awg
