SPECIFICATIONS

Brand Name: ECGSOLAX

Certification: CE

High-concerned chemical: None

Input: 110/120V

Is Smart Device: Yes

MAX PV Array power: 5600W

MPPT voltage range: 55-280VDC

Model Number: MPS-VX-4KW

Origin: Mainland China

Output Frequency: 50/60hz

Output Type: SINGLE

Selectable voltage range: 90/140 VAC

Weight: 9kg

battery voltage: 24v

wave form: pure sine wave

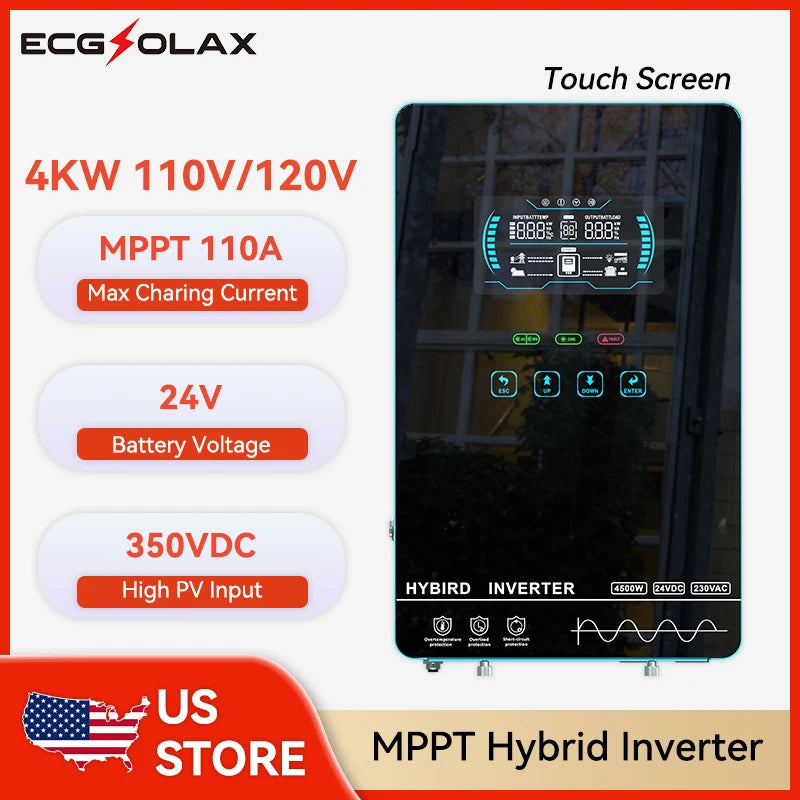

ECGSOLAX 4KW Hybrid Solar Inverter 24V 110V/120V With MPPT 110A Solar Charger Touch screen LCD Hybrid Inverter Max PV 350VDC

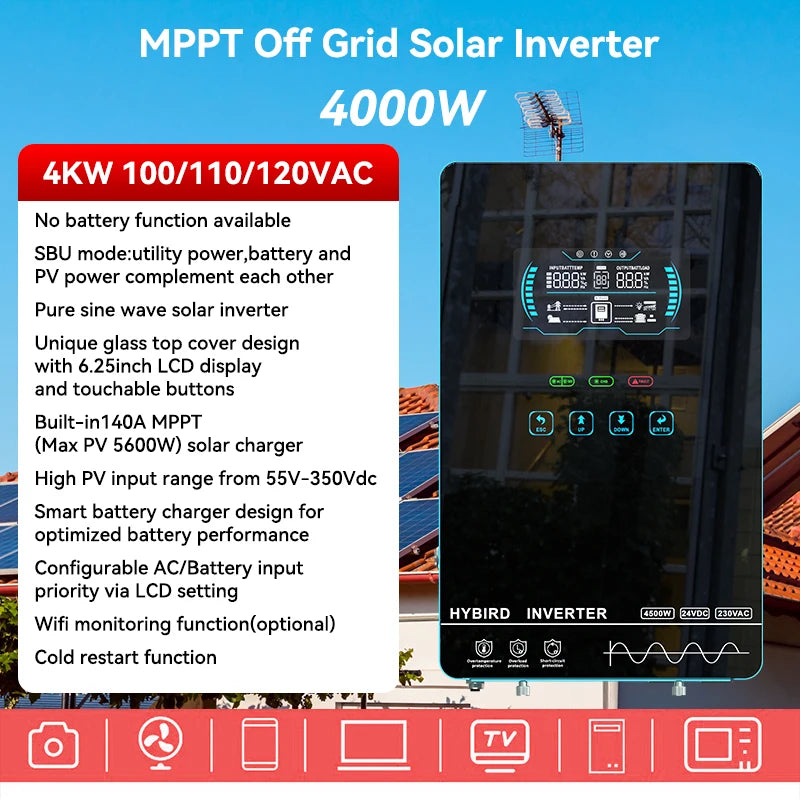

Features:

1. off grid solar inverter

2. No battery function available

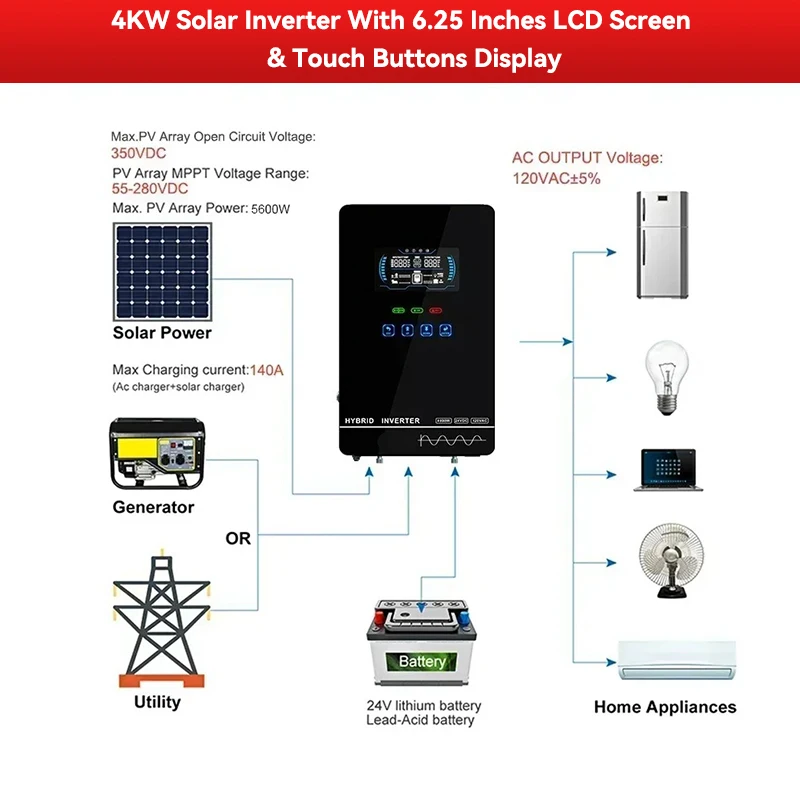

3. SBU mode :utility power,battery and PV power complement each other

4. Pure sine wave solarinverter

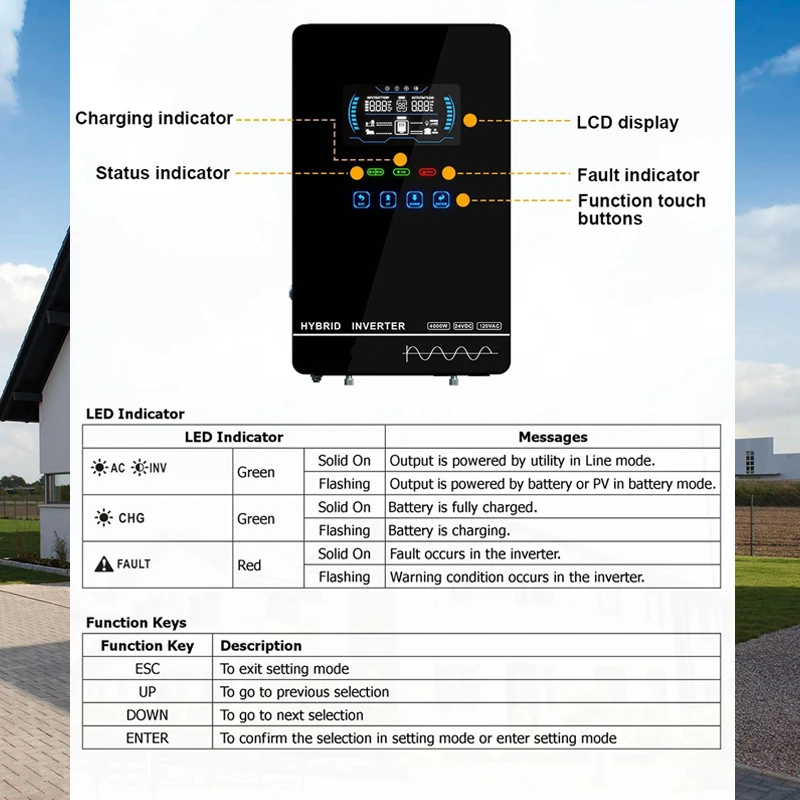

5. Unique glass top cover design with 6.25 inch LCD display and touchable buttons

6. Built-in140A MPPT(Max PV 5600W)solar charger

7. High PV input range from 55V-350Vdc

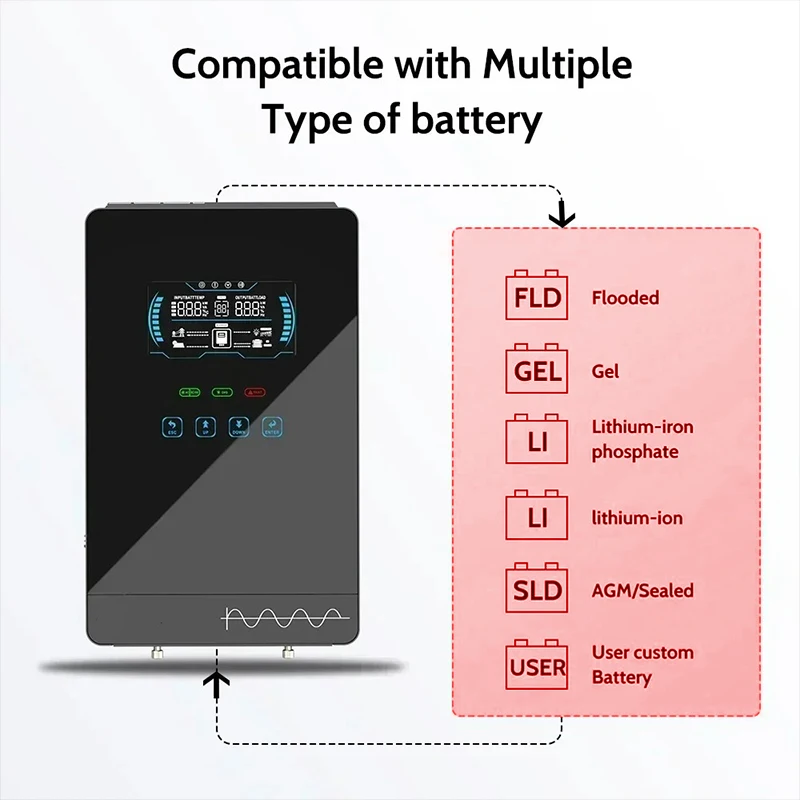

9. Smart battery charger design for optimized battery performance

10. Configurable AC/Battery input priority via LCD setting

11. Auto restart while PV is recovering

12. Over-load ,overtemperature and output short circuitprotection

13. Cold restart function

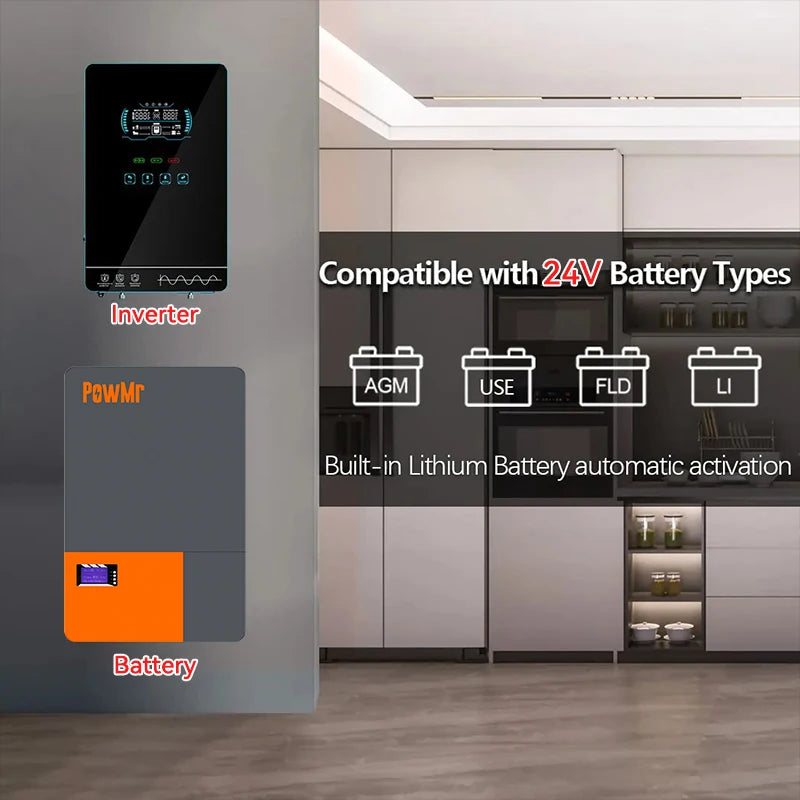

14. Built-in lithium battery automatic activation

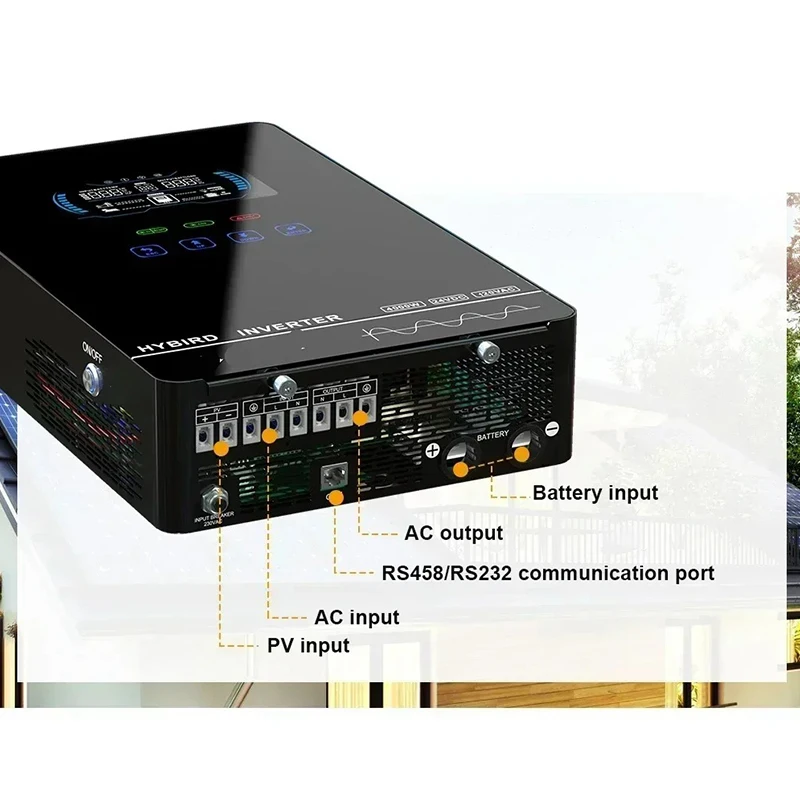

15. Communication with RS232/RS485

16. WiFi monitoring function (optional )

17. Anti-dust kit for harsh environment(optional)

18. Restore default Settings with one click

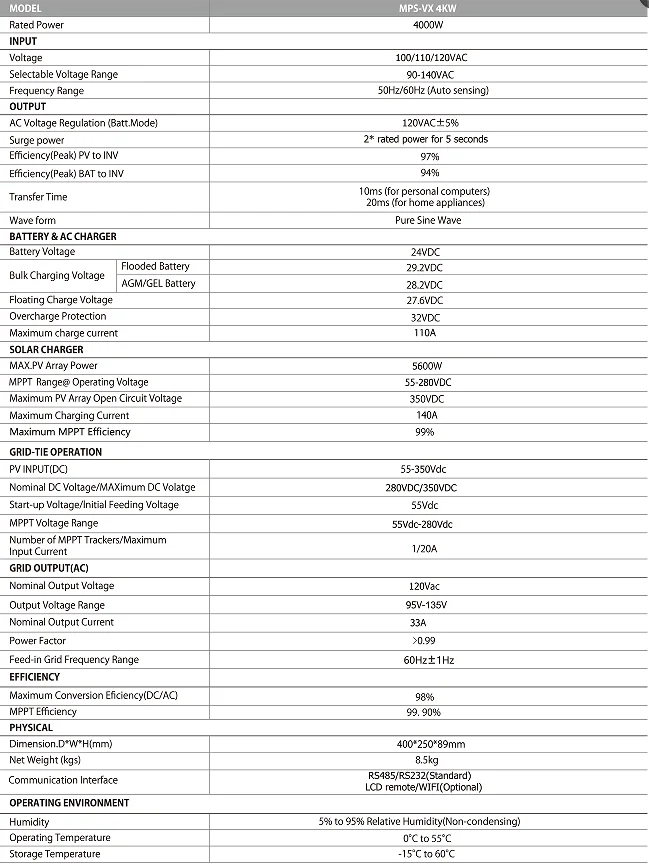

Specification:
